Guter Preis Online

Einzelheiten zu den Produkten

Haus > Produits >
Wasserdichtes Kreislaufanschluss
>
LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals
Alle Kategorien

Wasserdichtes Kreislaufanschluss

Wasserdichtes männlich-weibliches Verbindungsstück

Wasserdichtes Energie-Verbindungsstück

wasserdichtes Kabelverbindungsstück

Wasserdichtes Signalanschluss

Wasserdichtes Datenanschluss

Wasserdichtes Verbindungsstück RJ45

Wasserdichte Anschlüsse

Wasserdichte LED-Anschlüsse

Stromstecker
Treten Sie mit uns in Verbindung
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Kontakt jetzt

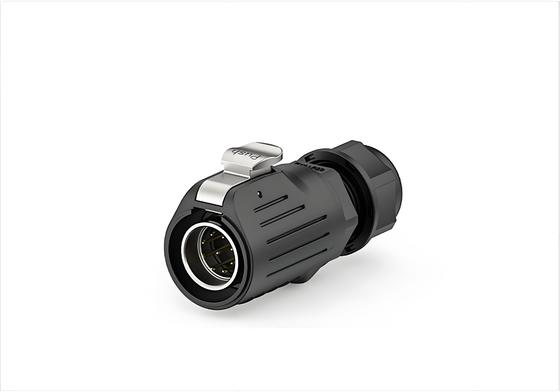

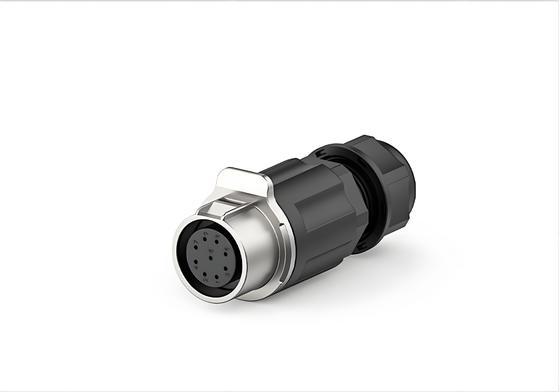

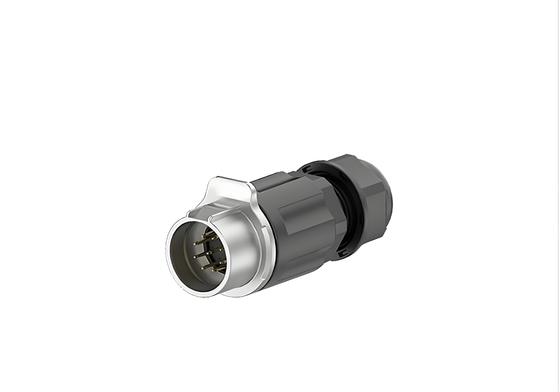

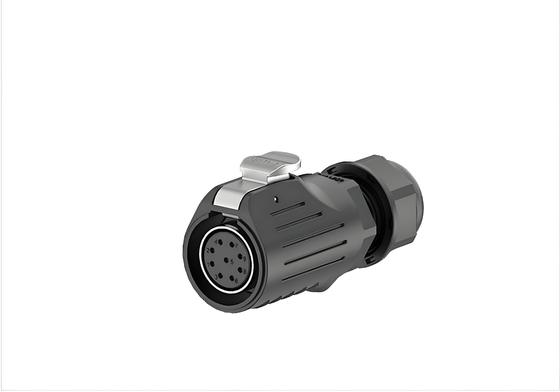

LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals
  • Name
  • Name
  • Name
  • Name

LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals

Markenbezeichnung: Cablein
MOQ: 100pcs
Preis: The price ranges from $1 to $4 USD per pieces
Verpackungsdetails: Hochwertiger Exportkarton
Zahlungsbedingungen: T/T, Western Union
Ausführliche Information
Produkt-Beschreibung
Ausführliche Information
Herkunftsort:
Shenzhen China
Zertifizierung:
CE, ROHS, TUV , ETL
Korrosionsbeständigkeit:
Hohe Korrosionsbeständigkeit
Anwendung:
Leistung, LED -Licht, Controller ， Signal
Aktuelle Bewertung:
5a
Verbindung:
Anschlusskasten/Ausgleichskabel/-kopf
IP -Ebene:
IP67
Temperatur standhalten:
-40 ℃ ~+80 ℃
Versorgungsmaterial-Fähigkeit:
Ausreichende Versorgungskapazität
Produkt-Beschreibung
LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals
Specifications
  • Pin: 9 Pin
  • Current Rating(A): 5A Max
  • Material: Metal+plastic
  • Conenction Way: Push-button snap fastener
  • Operating Voltage: 250V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Wire-to-Wire
  • Out Door UV Resistance: Pass
  • Cable Jacket OD: 0.34-0.75 mm²
Datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V
250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power:⌀8-12mm Standard Signal:⌀5-6.5mm Other:⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
Advantages
  1. Material & Performance:
    The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
  2. Secure Locking Mechanism:
    Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  3. Waterproof Design:
    Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  4. Certifications & Compliance:
    Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 0 LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 1 LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 2 LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 3
Application industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devies
LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 4
Drawing
LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 5 LP20 9-Pin 5A Signal Cable-to-Cable Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 6
FAQ
Q: What are the key applications of the LP20 9-Pin 5A Waterproof Connector?

This connector is designed for robust signal transmission in demanding environments. It is ideal for industrial automation, outdoor equipment, marine electronics, and any application requiring reliable cable-to-cable connections with waterproof protection. The 5A current rating and 9-pin configuration make it suitable for low-power control systems, sensor networks, and data communication setups.

Q: How does the metal shell and plastic interface enhance performance?

The metal shell provides superior mechanical strength, EMI shielding, and durability against physical impacts and corrosion. The plastic interface ensures lightweight insulation and resistance to environmental factors like moisture, UV exposure, and chemicals. Together, they offer a balanced combination of protection, longevity, and reliable signal integrity.

Q:Is this connector truly waterproof, and what standards does it meet?

Yes, the LP20 connector features a waterproof design with IP67 or higher ratings (depending on configuration), meaning it can withstand temporary submersion in water (up to 1 meter for 30 minutes). The solder terminals ensure a secure, gas-tight connection when properly installed, preventing moisture ingress. For specific certification details, refer to the product datasheet or contact our support team.
